Magnetostrictive Level Transmitter – MBT
Beijing SWlSA Instrument Co., Ltd.

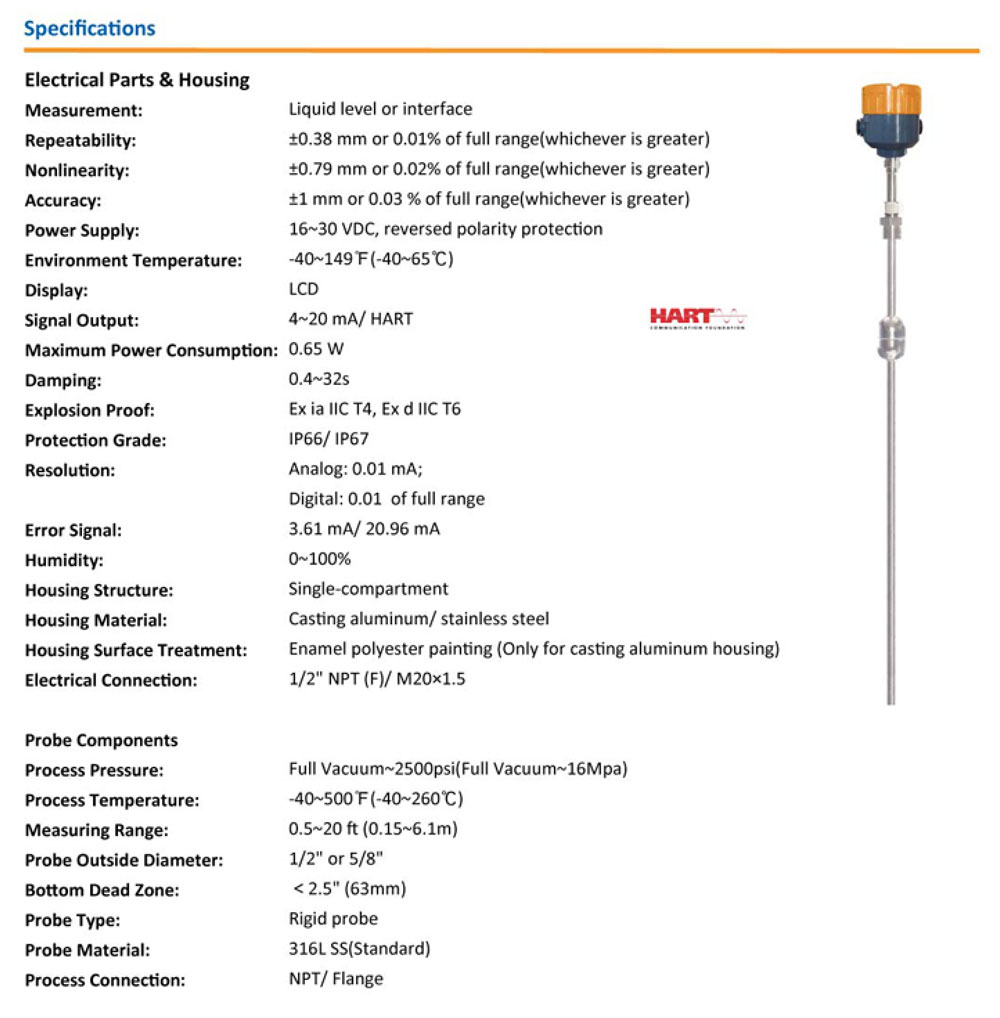

Magnetostrictive Level Transmitter – MBT

Type: MBT
  • Measurement:Liquid level or interface
  • Repeatability:+0.38 mm or 0.01% of full range(whichever is greater)
  • Nonlinearity:+0.79 mm or 0.02% of full range(whichever is greater)
  • Accuracy:±1 mm or 0.03 % of full range(whichever is greater)
  • Power Supply:16~30 V DC, reversed polarity protection
  • Environment Temperature:-40~149℉(-40~65℃)
  • Display:LCD
  • Signal Output:4~20 mA/ HART
  • Maximum Power Consumption: 0.65 W
The “Transformers” series magnetostrictive leveltransmitter of SWisA is an innovative product of highacuuracy and high reliability, providing a perfect solutionto accurately measure the liquid level and interface insevere conditions.
Get Quotation Contact

The “Transformers” series magnetostrictive leveltransmitter of SWisA is an innovative product of highacuuracy and high reliability, providing a perfect solutionto accurately measure the liquid level and interface insevere conditions. The “transformers’ ” measuring is notaffected by the changes of temperature, pressure,dielectric constant and other factors. With the advantagesof high accuracy, high stability and maintenance-free, itwell replaces and complements the defects of dispalcer,differential pressure transmitter, radar and other levelmeasuring products. it is widely used in the high-accuracymeasuring of liquid level and interface.

Applications

  • Boiler:Steam drum
  • Power Generation:Feedwater heaters, deaerator, condenser, ammonia storage, chemical water, etc.
  • Petroleum & Petrochemical: Gather and delivery of oil and gas, refining, ethylene, trimerization, etc.
  • Tank Farm:Oil refinery, oil depot, gas station, chemicals warehouse, petrochemical warehouse
  • Coal Chemical:Methanol, dimethyl ether, synthesis ammonia/urea, MTO, CTL, SNG
    Silicon industry:Organic silicon, polycrystalline silicon
  • Fine Chemicals:Methane oxide, epoxy ethane, aniline, BDO, PTMEG, carbon fber, POM, acetic acid, styrenerubber,crude benzol refning
  • Others:Metallurgy, pulp & paper, water treatment, biological pharmacy, food and beverage, etc.



Beijing SWlSA Instrument Co., Ltd.

Established in Mississauga, Canada, in 2004, SWiSA is nowa professional manufacturer of level measurementproducts. Beijing SWISA Instrument Co., Ltd., a jointventure, was founded by SWiSA Instrument inc. withBeijing Hity group in 2006. Consistently follows the business philosophy of "seekworldwide instrument solution & application" , we arestriving ourselves to provide world-class productsprofessional solutions and satisfying service to ourcustomers. Up to now, Beijing SWiSA owns wide range of levelmeasurement product line, also owns approvals as qualitymanagement system, PED, explosion proof of ATEX, IECand CCRITC. SWISA 's level measurement instruments are suitable forharsh working applications of high temperature highpressure, low temperature and cryogenic, corrosion andso on. These solutions are widely applied in variousindustries. Besides products and solutions, SWiSA alsoprovide superior services. SWISA is customers' excellent manufacturer of levelinstruments.Moreover,SWiSA prefers to be customersbusiness partner.
